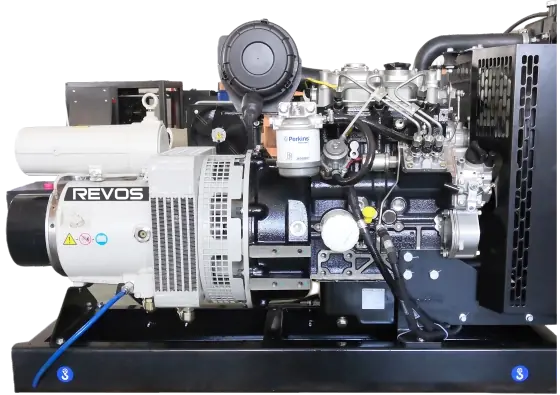

ERD Diesel Rotary Vane Air Compressor
The REVOS ERD diesel rotary vane air compressor is designed for outdoor compressed air supply where electric power is not available. It combines rotary vane compression technology with a diesel power unit, offering compact structure, adjustable pressure, reliable operation and flexible use in demanding field environments.
Product Overview
Designed for outdoor, mobile and off-grid compressed air applications.
Reliable Diesel-Powered Air Solution
The ERD diesel rotary vane compressor integrates the advantages of an industrial rotary vane compressor with a diesel engine power package. It is compact, adjustable and suitable for field use without external power supply or a large air receiver.
The unit can be used in outdoor drilling, emergency rescue, mobile operation, drilling rig matching, offshore platform work, dry ice cleaning and oilfield service applications.
Core Working Logic
Product Advantages
Engineered for off-grid operation, stable pressure and reliable field performance.
Diesel Powered
Suitable for outdoor work where electric power is not available.
Compact Unit Design
Integrated structure reduces installation space and supports mobile operation.
Adjustable Pressure
Pressure can be adjusted according to actual operating conditions.
Stable Air Output
Rotary vane compression supports stable air delivery and continuous use.
Integrated Cooling
Built-in cooling system helps ensure reliable operating temperature.
Customizable Cabinet
Noise reduction cabinet can be customized according to user requirements.
Technical Parameters
The following model data is filled with real parameters from the REVOS PDF for the ERD diesel rotary vane compressor series.
| Model | Air Flow L (8 bar) | Air Flow H (10 bar) | Air Flow HH (13 bar) | Speed (r/min) | Dimensions (mm) | Cooling Method | Outlet Size |
|---|---|---|---|---|---|---|---|
| ERD504 | 0.70 m3/min | 0.53 m3/min | 0.49 m3/min | 1500 | 1200 x 470 x 780 | Integrated air cooling | Rp3/4 |
| ERD505 | 0.89 m3/min | 0.76 m3/min | 0.57 m3/min | 1500 | 1200 x 470 x 780 | Integrated air cooling | Rp3/4 |
| ERD507 | 1.38 m3/min | 1.15 m3/min | 0.96 m3/min | 1500 | 1350 x 670 x 1000 | Integrated air cooling | Rp1/2 |
| ERD511 | 1.97 m3/min | 1.70 m3/min | 1.35 m3/min | 1500 | 1466 x 652 x 954 | Integrated air cooling | Rp3/4 |
Application Industries
Recommended for outdoor, mobile and field-use compressed air applications.
Need a Diesel Air Compressor Recommendation?
Send us your required working pressure, air flow, outdoor environment and equipment application. REVOS can recommend a suitable ERD diesel rotary vane compressor model for your project.
